OEM 12V 100Ah Lithium Battery Pack For lead acid replacement with
Bluetooth
Quickly Details
12V lithium ion battery is new environmentally friendly backup
power system focus on short-time and high-rate discharge
scenarios.The environmentally friendly lithium ion battery
configured with high-performance BMS, has a wide range of
performance and application advantages compared with conventional
battery.
Model: 12V 100ah LiFePO4 battery
Voltage: 12V
Capacity: 100Ah
Digital Items
Battery Description
| Items | Standard | Remark |
| Nominal voltage | 12.8V | |
| Typical capacity | 100Ah | At 0.2C discharge rate |
| Max continuous discharge current | 100A | |
| Over protection current | 400±20A | 35±10 ms |
| Discharge cut-off voltage | 10V | |
| Charge voltage | 14.4±0.1V | CC-CV |
| Charge current | ≤ 100A |
| Inner resistance | ≤50mΩ | |
| Operation temperature range | Charge | 0℃～+45℃ |
| Discharge | -20℃～+60℃ |
| Storage temperature range | 0℃～40℃ | Capacity 80% |
| Humidity | 5%≤RH≤85% | |
| Shell material | ABS | |
| Weight | About 13.5±0.1Kg | |
| Size(L*W*H) | (330±1)*(173±1)*(217±1)mm |
| Protection function | Over charge protection,Over discharge protection,Over current
protection,Balanced function |
Features&Functions
- low self-discharge( <3% per month,<15% per year)
- High density: 1/3 weight & 1/2 volume of lead acid battery
- high consistency
- eco-friendly
- long life & deep cycle( over 2000cycles @ 100%DOD)
- no memory effect
- patent Bluetooth connection feature optional, enable IOS & Android
app to monitor instant battery status(SOC, battery voltage, remain
AH, charge current, temp., life cycle, error)

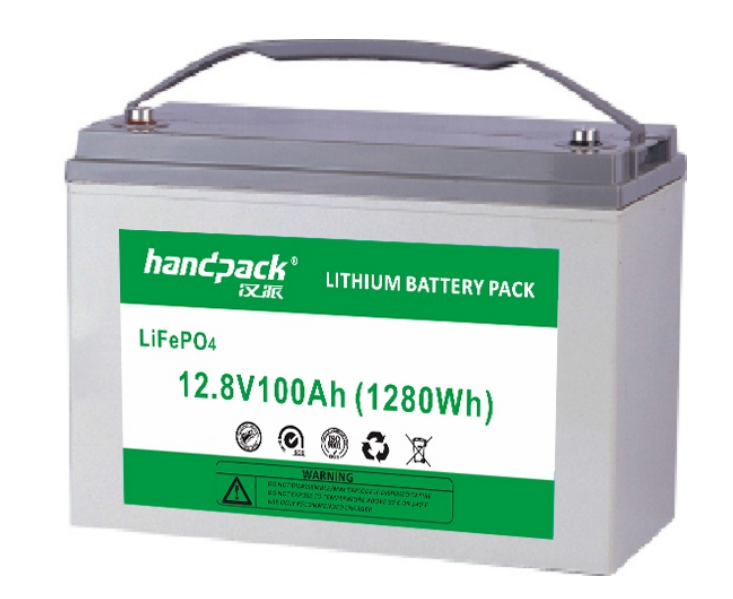

Battery Pictures
Applications
1. Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and
Family
2. Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical
Instrumnt / Military Equipment
3. Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED
Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric
Skateboard
--LED Backup / Engine Starting Battery,etc.
Standard Test Conditions
Battery test must within 1 month after production.
All test in this specification should be in standard atmospheric
conditions:
Temperature:25± 5℃, relative humidity: 60±25%.
Electrical Performance
| Test Items | Test Methods | Test Standards |
| Capacity retention rate | After standard charge under 5.1 specified conditions, store the
cells for 28 days, then discharge at 0.2C(A )to cut-off voltage. | Capacity retention rate≥95% |
| Cycle Life | Standard charge at 0.2C(A),rest 0.5~1 h,discharge at 0.2C to cut
off voltage rest 0.5~1h, repeat the above steps until 2000 cycles. | Capacity retention rate≥80% |
FAQ
1. Are you factory?
A: Yes, we are factory at Shenzhen China. Welcome to visit our
company at any time.
2. Do you have current sample in stock?
A: Usually we don't have, because different customers have
different requests, even the voltage and capacity are the same,
other parameters maybe different. But we could finish your sample
quickly once order confirmed.
3. What's the delivery time for mass production?
A: Usually 15-25days, it depends on the quantity, material, battery
cell model and so on, we suggest to check delivery time case by
case.
4. OEM&ODM are available?
A: Sure, OEM&ODM are welcome and Logo can be customized too.
5. What is the normal lifetime about battery?
A: More than 800 times for lithium ion battery; more than 2,000
times for LiFePO4 lithium battery.
6. What is your MOQ?
A: 1PCS sample order can be acceptable for testing.
7. How to maintain the battery?
A: The battery should be stored in clean, dry, ventilated, dark
environment
when not using,keep it after full charge, recharge it every 3
months or 6 months.
8. Why choose HANDPACK Battery?
A: 1) A professional sales team which provide consultant service
and the most competitive battery solutions.
2) Wide-range battery products to satisfy different customer's
requirement.
3) Quick response, every inquiry will be replied within 24 hours.
4) Good after-sale service, long product warranty and continual
technique support.
5) With 15 years-experience for manufacturing lithium battery.
