3.2V100Ah LiFePO4 Battery Cells

Ask Lasest Price
Brand Name :	Handpack, Samsung,LG
Model Number :	HPK-3.2-100
Certification :	CE/RoHS/MSDS/
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	15,000pcs per week
Delivery Time :	5-7 working days for sample order,7-25 working days for bulk order

Add to Cart

Product Details
Company Profile

3.2V100Ah LiFePO4 Battery Cells

3.2V100Ah LiFePO4 Battery Cells

Quick Detail

Prismatic LiFePO4 battery

LiFePO4 battery cell 3.2V 100Ah/25Ah/50Ah

Rechargeable LiFePO4 battery with pcm and wire

Model	Nominal Voltage (V)	Capacity (Ah)	Size(mm)	Cycle Life

HPK-3.2-10	3.2	100	2770112	≥2000

Battery Specifications

Model no	HPK-3.2-100
Normal voltage	3.2V
Norminal capacity	100AH 0.2C Discharge
Case Material	AL
Package Material	PVC
Charging Voltage	3.75V±0.05V
Internal Resistance	≤4(mΩ)
Standard Charing Current	Standard charge: 0.2C ; Rapid charge: 0.5C
Standard Charging Method	0.2C CC(constant current) charge to 3.65V, then CV(constant voltage 3.65V) charge till charge current decline to 0.05C
Max Charging Current	1C
Max Discharge Current(peak)	3C
Charge cut-off voltage	3.65±0.05V
Discharge cut-off voltage	2.3V
Weight	≤380g
Cycly Life DOD 80%	≥2000
Size	2770112MM
Charge temperature range	0°C-45°C
Discharge temperature range	-20°C-60°C
Storage temperature range	-10°C-45°C (time <3 months)
Warranty time	3 years

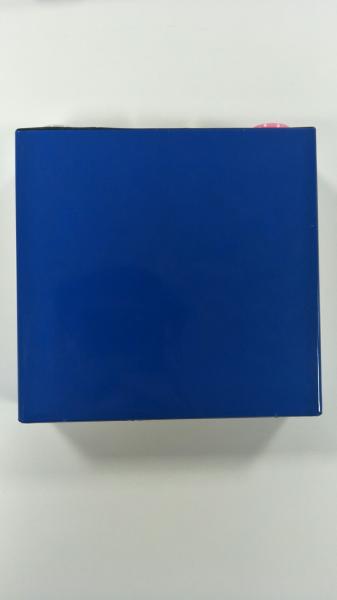

Battery Picture

Battery Advantages

1. Long cycle life. More than 2000 times (charge and discharge at 1C, 80% capacity retention after 2000 cycles);

2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.

3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.

4. Good charging and discharging performance. 3C continous discharge and 10C burst.

5. Full green and . All raw material of the batteries are environmental-friendly,

6. Wide working temperature range: From -20℃ to 60℃, extremely cold and hot weather will not affect its performance.

7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.

8. Produced with automatic equipments.

Our Workshop

Applications

1. Electric transportation vehicles
2. Backup power supply
3. Home appliance products
4. Emergency power supply, LED light & flashlight
5. Outdoor sports products
6. Consumer applications, communicate & telephone equipment
7. Power tools

Payment Term
1 Sample order:100% T/T for sample order;
2.Large quantity: 30% T/T in advance,70%T/T before shipment;

Package&Shipment
